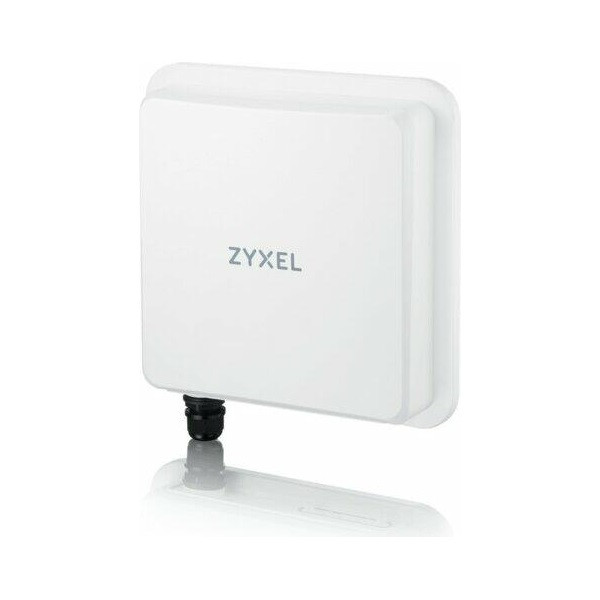

5G NR interface
3GPP Release 15 standard-compliant
Supports both NSA and SA modes
Supports Sub-6 NR DL 2xCA (TDD/FDD)
Supports frequencies:
FDD: n1, n3, n5, n7, n8, n20, n28
TDD: n38, n40, n41, n77, n78
Supports DL 4×4 MIMO:
FDD: n1, n3, n7
Data rates:
5G SA: DL 4.67 Gbps; UL 2.5 Gbps**
5G NSA: DL 3.74 Gbps; UL 1.46 Gbps**
Output power:
Class 2 (26 dBm) for 5G NR n41/n78
Class 3 (23 dBm) for all 5G NR bands
4G LTE interface
3GPP UE Category 19 standard-compliant
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41/B42/B43
Hardware interface
One 2.5GbE, 10/100/1000/2500 BaseT -TX Auto Rate, Auto Duplex
Two LED indicators for:
5G/4G signal strength
Device status
One 3FF micro SIM card socket
One reset to default button
Power consumption at PoE
< 15 W (est.)
Item
dimensions (WxDxH):255 x 256 x 58 mm (9.99” x 10.03” x 2.28”)
weight:1112 g (2.452 lb.)
Packing
dimensions (WxDxH):368 x 287 x 111 mm (14.49” x 11.30” x 4.37”)
weight:2517 g (5.549 lb.)
Operating Environment
Temperature:-40°C to 60°C (- 40°F to 140°F)
Humidity:5% to 95% (non-condensing)
Storage Environment
Temperature:-40°C to 65°C (-40°F to 149°F)
Ingress Protection rating
IP68
Lightning protection
K.21 enhanced mode, 6 KV
CE
WEEE (Waste Electrical and Electronic Equipment) Directive certification
RoHS (Restriction of Hazardous Substances) Directive certification
HSF (Hazardous Substance Free)
European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste
Standard 802.3af/at Power of Ethernet (PoE) injector
1.8 m Ethernet cable yellow 8P8C
PG19 thread (cable gland)
Quick start guide
Warranty card
DoC and safety warning
Wall/pole mounting kit
