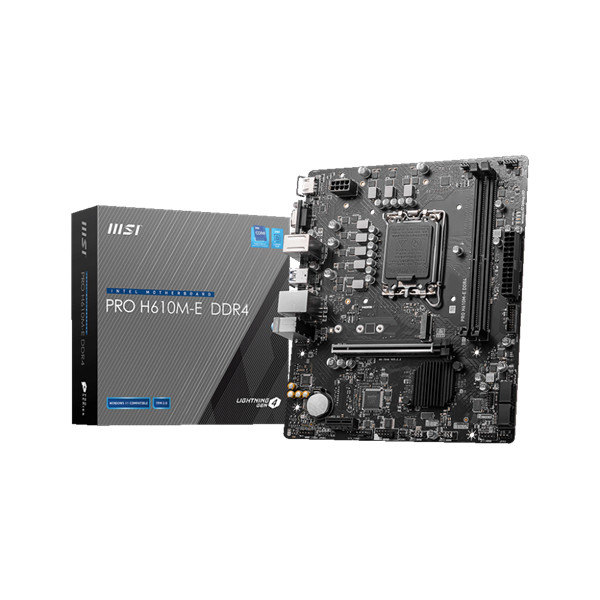

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX

28 042 Ft

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX

Name: MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX
Brand: MSI COMPUTER
SKU: 336336
Price: 28042 HUF
Availability: InStock

Raktáron

28 042 Ft

Gyártó:

MSI COMPUTER

Várható szállítás :

2-5 munkanap

A vásárlás után járó pontok: 280 Ft

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX

Részletek

PROCESSOR

Supports 12th/ 13th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹
Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel^® H610 Chipset

MEMORY

2x DDR4 memory slots, support up to 64GB ¹
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
- Supports PCIe 3.0 x1

ONBOARD GRAPHICS

1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz ¹ / ²
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz ¹ / ²
1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

SATA PORTS

4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT

1x M.2 slot (Key M) (from CPU)
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices

AUDIO

Realtek^® ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Realtek^® RTL8111H 1Gbps LAN controller

POWER CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin +12V power connector

INTERNAL USB CONNECTORS

1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
- Supports additional 4 USB 2.0 ports

FAN CONNECTORS

1x 4-pin CPU fan connector
2x 4-pin system fan connectors

SYSTEM CONNECTORS

1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector

Adatok

Gyártói cikkszám:

PRO H610M-E DDR4

Garancia:

36 hónap

EAN:

4711377002660

Kivitel:

Dobozos

Memória órajel:

3200

HDMI:

Van

D-Sub:

Van

DVI:

Nincs

Chipset gyártó:

Intel

Foglalat típusa:

S1700

Memória típus:

DDR4

USB 3.1:

Wireless:

Nincs

SATA III:

Display Port:

Nincs

Thunderbolt:

Nincs

Párhuzamos port:

Nincs

Soros port:

Nincs

M.2 foglalat:

Van

Audio:

7.1 HD

Grafikus foglalat:

PCI-Ex16 3.0

Form Factor:

mATX

LAN1:

10/100/1000 Mb/s

Max memória:

Memória foglalatok száma:

Raid:

Nem

PCI-E foglalatok száma:

USB 3.0:

PCI foglalatok száma:

EAN:

4711377002660

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!
