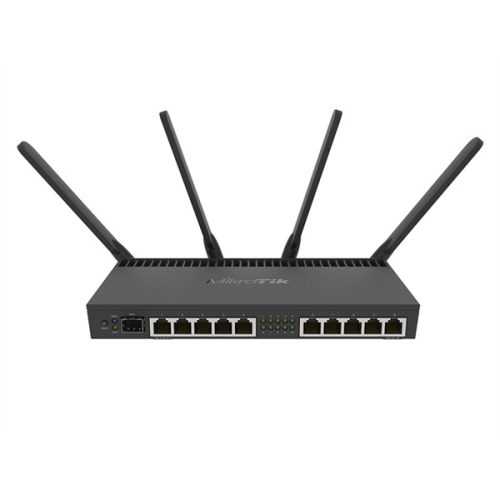

MIKROTIK Wireless Router DualBand 10x1000Mbps + 1x10Gbit SFP+, AC2000, Asztali - RB4011IGS+5HACQ2HND-IN

• Részletek
• Adatok
• Vélemények

Részletek

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

Specifications

Details
Product code	RB4011iGS+5HacQ2HnD-IN
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	228 x 120 x 30 mm
License level	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
Tested ambient temperature	-40°C to 45°C



Powering

Details
PoE in	Passive PoE
PoE out	Passive PoE up to 57V
PoE in input Voltage	18-57 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max out per port output (input > 30 V)	420 mA
Max out per port output (input < 30 V)	600 mA
Max total out (A)	600 mA
Max power consumption	44 W
Max power consumption without attachments	23 W



Wireless

Details
Wireless 5 GHz number of chains	4
Wireless 5 GHz standards	802.11ac
Antenna gain dBi for 5 GHz	3
Wireless 5 GHz chip model	QCA9984
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	3
Wireless 2.4 GHz chip model	R11e-2HnD



Ethernet

Details
10/100/1000 Ethernet ports	10



Fiber

Details
SFP+ ports	1



Peripherals

Details
MiniPCI-e slots	1
Serial port	RJ45



Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes



Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	33	-96
54MBit/s	29	-81
MCS0	33	-96
MCS7	28	-77
MCS9	26	-72



2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	28	-100
11MBit/s	28	-94
6MBit/s	29	-96
54MBit/s	25	-80
MCS0	26	-96
MCS7	24	-79





Included parts

•
  24V 2.5A power adapter
•
  IEC cord

Adatok

Gyártói cikkszám:

RB4011IGS+5HACQ2HND-IN

Garancia:

24 hónap

EAN:

5996409294209

Sebesség:

2033Mbps

Frekvencia:

2,4GHz és 5GHz

Szabvány:

802.11b/g/n, 802.11a/n/ac

EAN:

5996409294209
